TIBC
CAL target
Source: NORIP mean of method group "IFCC (as transferrin)"
| Material | Method group | Nordic Trueness Project 2002 |
Reference method, DGKC 1997 |
NORIP |
|||||
| MEP17-1 transferred value | Standard uncertainty | Value | Standard uncertainty | Mean | s/mean | Standard error of mean (SEM) /mean | No of labs | ||
| CAL | IFCC (as transferrin) | 68.0 (/25.1 = 2.71 g/L transferrin) | 4.2% | 0.94% | 20 | ||||
| X | 68.9 | 3.7% | 0.83% | ||||||
| CAL | IFCC Behring NIA(as transferrin) | 62.3 | 3.2% | 4.5% | 2 | ||||
| X | 62.5 | 8.0% | 5.7% | ||||||
| CAL | Photometry (not UIBC) | 62.4 | 8.6% | 4.3% | 4 | ||||
| X | 63.8 | 7.8% | 3.9% | ||||||
| CAL | Photometry (not UIBC) | 64.8 | 0 | 0 | 1 | ||||
| X | 65.7 | 0 | 0 | ||||||

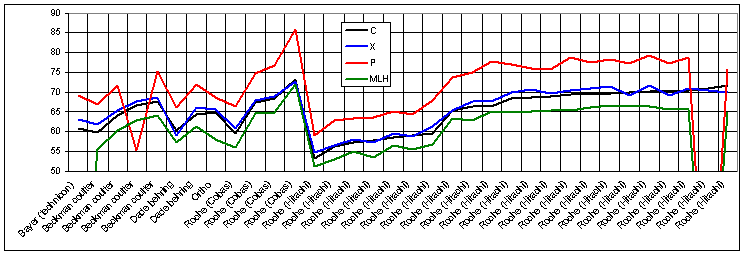

Laboratory means of controls
The mean of control values for each lab are first sorted on method group (or for some components on instrument producer) and then on mean value for CAL. Therefore you will see the black line (CAL) as a smooth increasing line with an abrupt decrease for each method group. The other lines are of course not so smooth. MLH is the mean of HIGH and LOW controls.
Notice that for some components MLH for Vitros is lower than for the other metod groups because Vitros have problems with diluted material (not with the concentrated HIGH!).
If a line goes lower than the Y-scale, it means that that the laboratory has not measured the respective control (for MLH: HIGH and/or LOW is not measured).

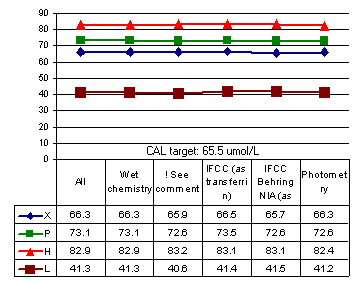

CAL-corrected mean of control values X, P, HIGH (H), LOW(L)
For each method group all corrected values outside method group mean + 2s are discarded before calculation
Instrument comparisons of mean and standard deviation of CAL stpf_i
Y-axis: Deviation from CAL-target. X-axis: Number of cal values in brackets

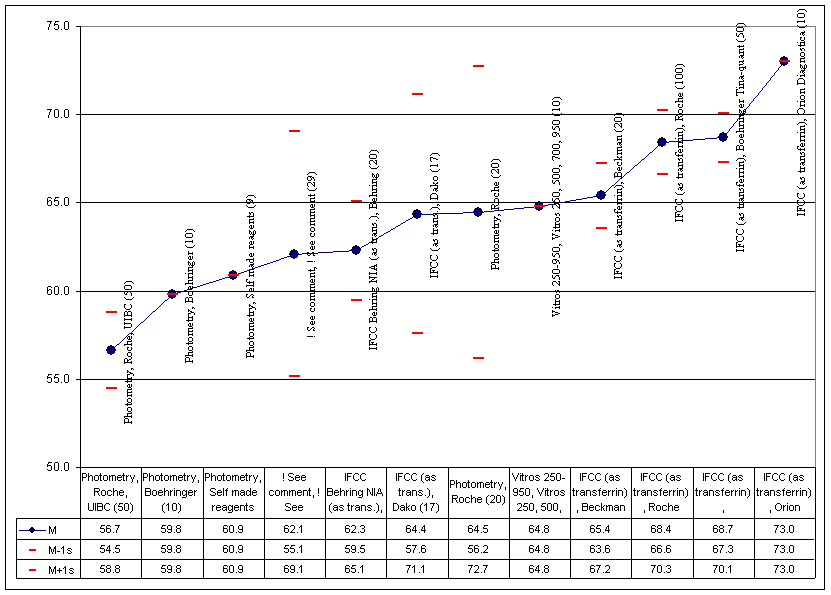

As above, but method group, method name (with number of CAL values in brackets) on X-axis instead of instrument producer (NB! UIBC to the left).
Laboratory's mean of CAL relative to "minimum" bias goals...
...expressed as Target value x (1 + 0.375 x CVb) where target value used is 65.44 and CVb is total biological variation expressed as a coeffisient of variation (5.2%)
Method specific %CV (all control values), median, maximum and minimum (no of labs in brackets on X-axis)
Distributions, Roche (Cobas and Hitachi)

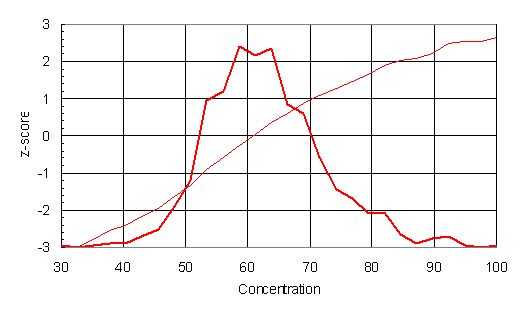

Cumulative distributions of reference values

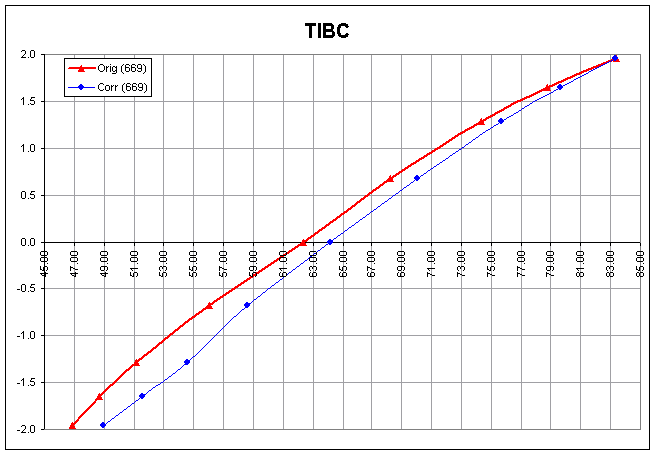

Before and after correction with CAL (updated 2004.02.10)

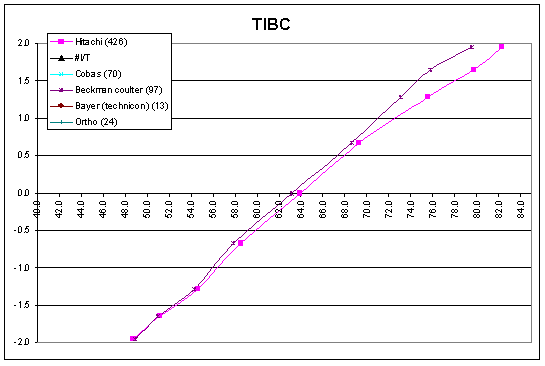

Main instrument manufacturers
Updated 2004.02.09
Y-axis: z-score (or standard deviate; i.e. -1.96 represent 2.5% of distribution, 0 represent 50% or median and 1.96 represent 97.5% of distribution)
Number of reference values in distribution is shown in brackets in explanation box.

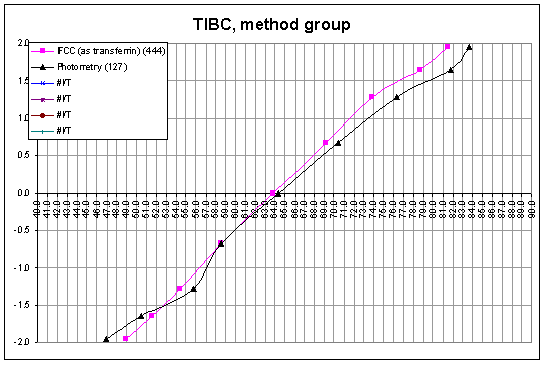

Method groups

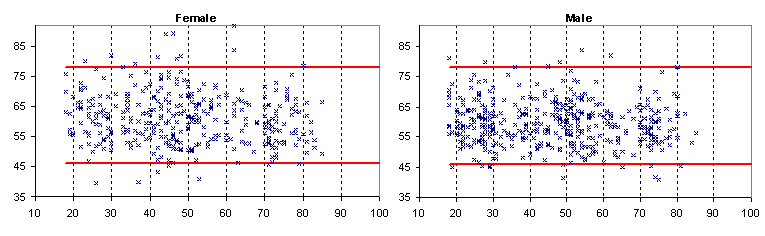

Age related reference intervals
Reference values and - limits (y-axis) against age (x-axis)
Reference limits (red) as proposed by NORIP (see here)
Country differences

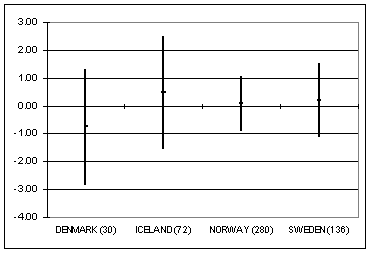

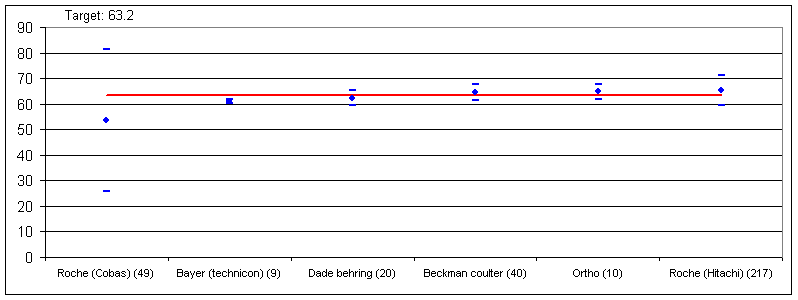

Country mean for Hitachi/Modular instruments
Deviation from all mean ± error (2s/n˝ where s is standard deviation and n is number of data for each country).

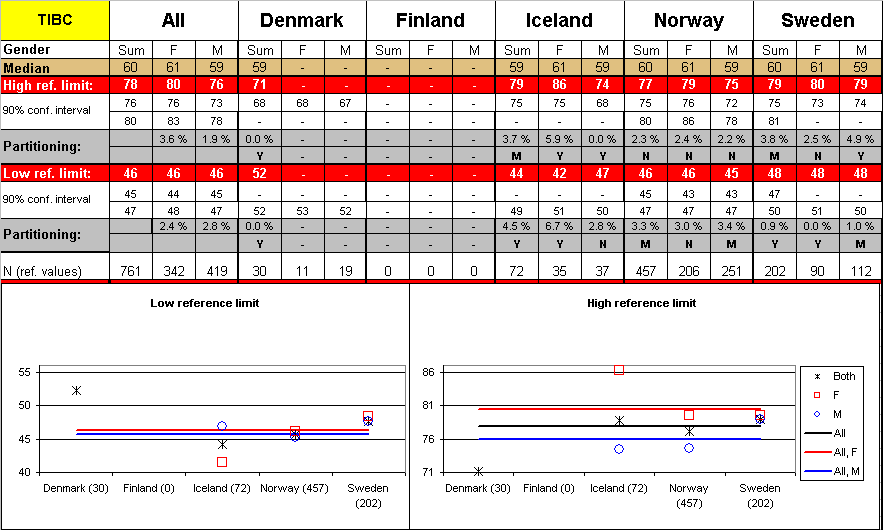

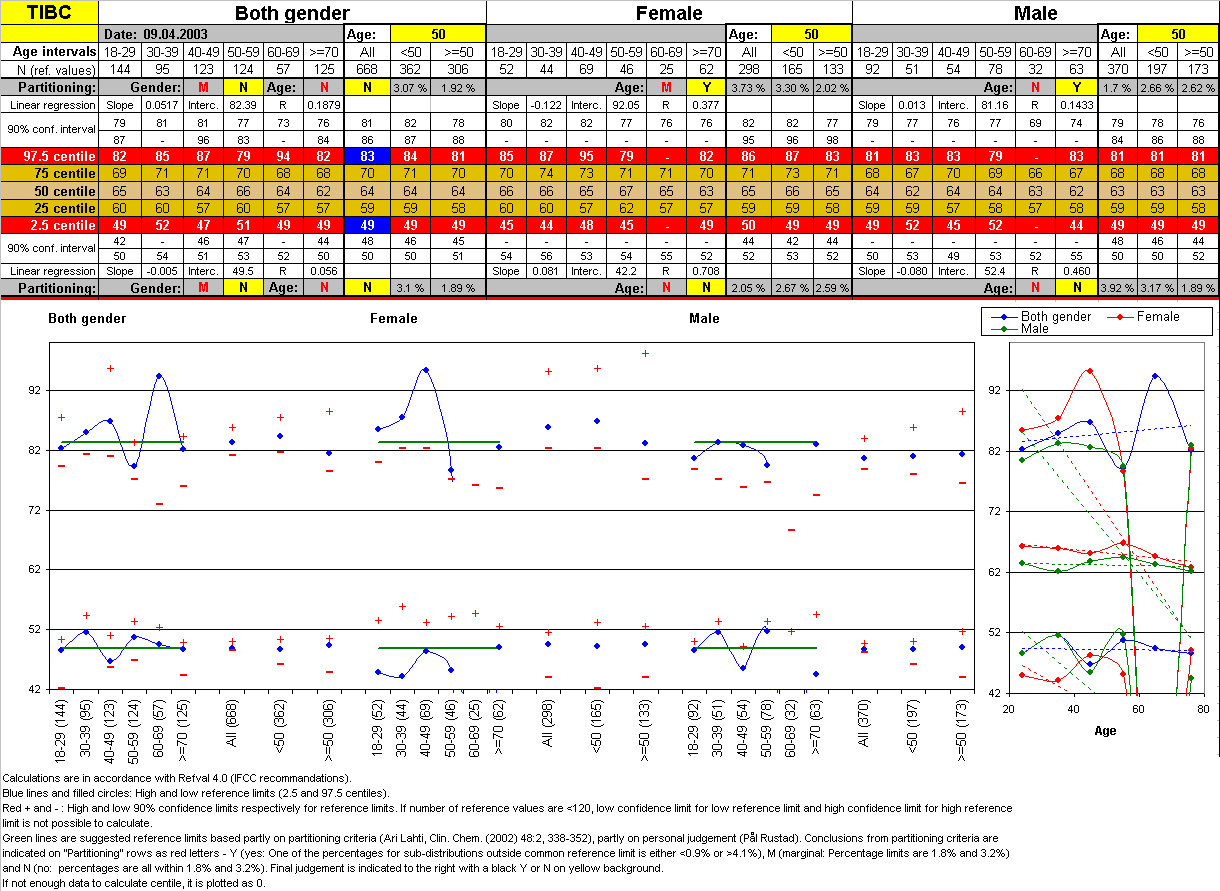

Country reference limits with 90% confidence interval
Partitioning is indicated in the grey rows as Y (yes: <0.9% or >4.1% of subpopulation outside common reference limit), M (moderate: % outside is either in the interval [0.9%,1.8%] or [3.2%, 4.1%]), N (no: % outide is in the interval [1.8%, 3.2%]) as evaluated accoding to Ari Lahti's recommandations (but so far not taken into account).
The conclusions (N, M or Y) for partitioning (grey rows) for "Sum", "F", "M" for each country is relative to respective columns in "All".

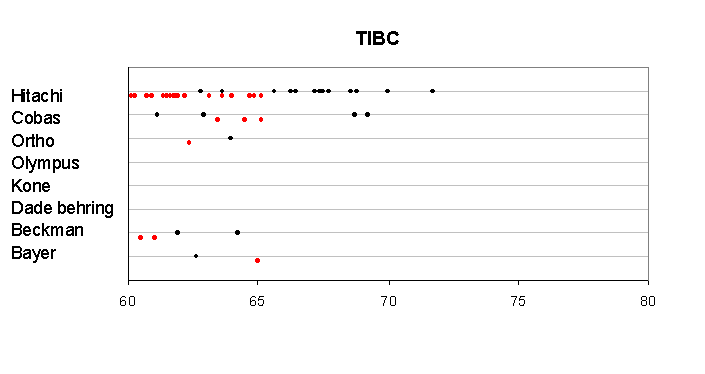

Mean of thawed serum reference values (person results) for each laboratory and instrument producer.
Black points - not corrected by laboratory mean of CAL or X.
Red points - corrected by laboratory mean of CAL or X.

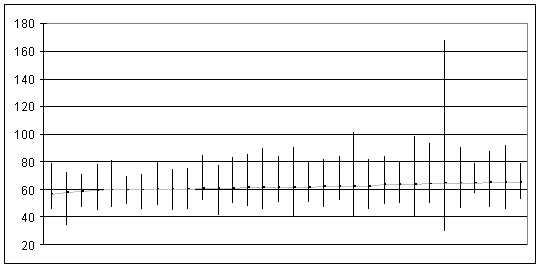

Maximum, mean and minimum of all reported reference values (person results) for each laboratory sorted on mean.

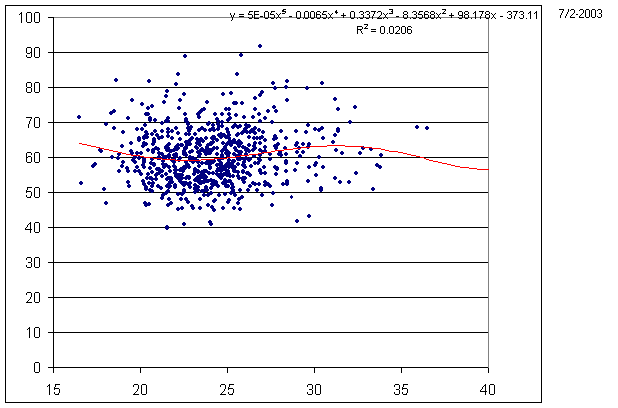

Correlation with Body Mass Index (weight/height˛)
(selected data for calculation of reference intervals)

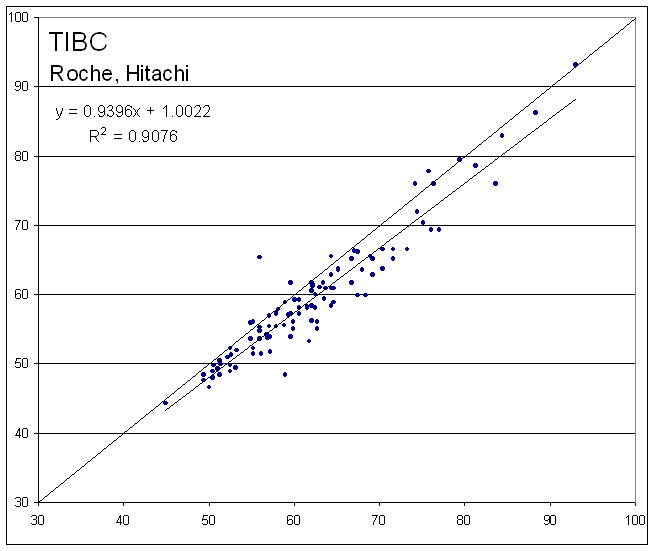

Comparisons thawed serum (x)/fresh plasma (y) (regression plot) stpf
Only data for calculating reference intervals used .
Regression model: Passing and Babloc
Software: Analyse-It
Comments: None
Comparisons fresh serum/thawed serum (regression plot) stsf
Comments:
Instrument comparisons thawed serum (x)/fresh plasma (y) korr_sp
Comments: None
